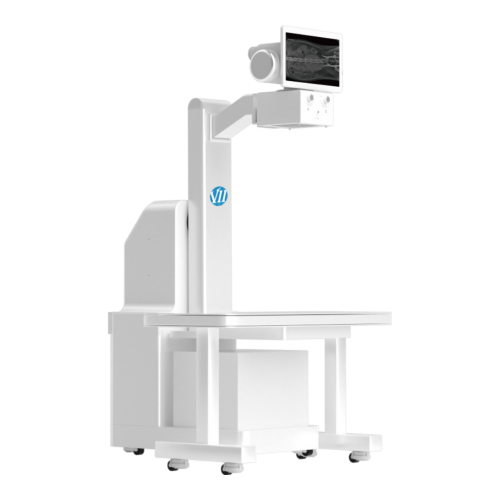

DX-VM Plus Veterinary Digital X-Ray System is an advanced digital radiography solution featuring a rotary arm design. This system enables imaging from multiple angles, allowing more flexible and comprehensive radiographic examinations in veterinary clinics and animal hospitals.

Operating with digital flat panel detector technology, the system transfers X-ray images to the computer within seconds and delivers high-resolution image quality. Its rotary arm structure allows imaging in multiple positions, offering significant advantages especially for large animals or standing-position examinations.

The DX-VM Plus provides fast and reliable imaging support for orthopedic evaluations, thoracic and abdominal examinations, and veterinary surgical planning.

Technical Specifications

• System Type: Digital DR Veterinary X-Ray System
• System Structure: Rotary Arm Design
• Generator Power: 32 kW
• Maximum Tube Voltage: 125 kVp
• Maximum Tube Current: 400 mA
• Focal Spot: 0.5 / 1 mm Dual Focus
• Flat panel detector support (17×17 or 14×17)
• Digital image processing software
• DICOM-compatible image archiving
• Rapid image acquisition
• Ergonomic design optimized for veterinary radiography applications

System Components

• Rotary Arm X-Ray Column
• X-Ray Tube
• High-Frequency Generator
• Digital Flat Panel Detector
• Image Processing Software
• Workstation Computer and Monitor

Applications

• Small and large animal radiography
• Orthopedic examinations
• Thoracic imaging
• Abdominal examinations
• Trauma and fracture assessment
• Surgical planning
