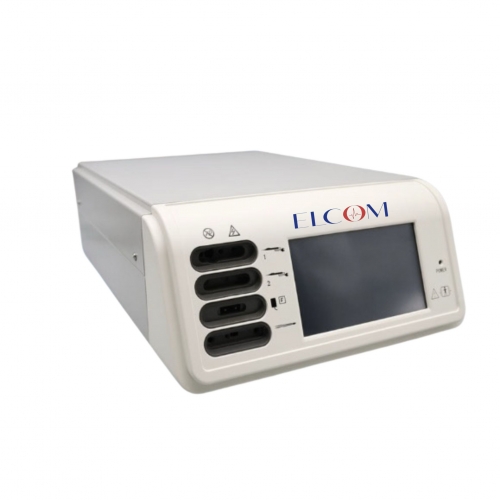

HV-150 LigaSure Electrosurgical Unit is a high-frequency surgical energy system developed for safe and controlled tissue cutting, coagulation, and vessel sealing during surgical procedures.

Thanks to LigaSure technology, it securely seals vessels to reduce bleeding and improve surgical control throughout the operation. With monopolar and bipolar operating modes, the system offers flexible use across a wide range of surgical applications.

Its user-friendly control panel and digital display allow easy adjustment of device settings. The HV-150 is a professional electrosurgical solution delivering reliable performance in veterinary and general surgical procedures.

Technical Specifications

• Device Type: Electrosurgical Unit with LigaSure Function
• Operating Frequency: Approx. 512 kHz
• Maximum Output Power: 150 W

Operating Modes

• Monopolar Cutting
• Monopolar Coagulation
• Bipolar Coagulation
• LigaSure Vessel Sealing Mode
• Vessel Sealing Capacity: Seals vessels up to 7 mm diameter
• Display: Digital LCD / TFT Screen
• Energy Control System: Automatic Energy Adjustment Based on Tissue Resistance
• Safety System: REM Patient Electrode Monitoring
• Power Supply: 100–240V / 50–60 Hz
• Dimensions: Approx. 47 × 34 × 17 cm
• Weight: Approx. 6–8 kg
