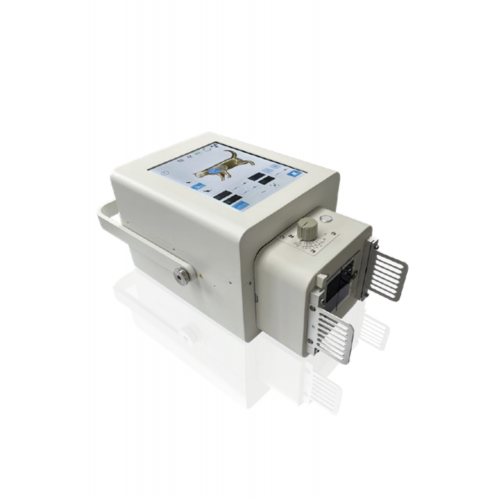

Vetoo 100 mA Display Veterinary X-Ray Device is a high-frequency digital X-ray system developed for fast and high-quality radiographic imaging in veterinary clinics and animal hospitals. Its compact structure and digital control display provide ease of use and allow rapid adjustment of exposure parameters.

The device is commonly used with DR panel systems to deliver clear and fast imaging results for bone, thoracic, and abdominal examinations. Its high-frequency generator ensures more stable radiation output and enhanced image quality. With its portable and mobile-use capability, it is an ideal imaging solution for veterinary clinics, mobile healthcare vehicles, and field applications.

Technical Specifications

Device Type: Veterinary Digital X-Ray System
Maximum Power: 5 – 5.6 kW
Tube Voltage (kV): 40 – 125 kVp
Tube Current (mA): 20 – 100 mA
mAs Range: 0.1 – 320 mAs
Exposure Time: 0.001 – 10 s
X-Ray Tube Focal Spot: 0.6 / 1.8 mm
Operating Frequency: 80 – 200 kHz High-Frequency Generator
Power Supply: 220V / 50–60 Hz
Control Panel: Digital LED / LCD Display Control System
Compatibility: Compatible with DR Panels, Computers, and Imaging Software
Cooling: Air-Cooled System
Dimensions: Approx. 290 × 260 × 230 mm
Weight: Approx. 15–20 kg Portable Structure
