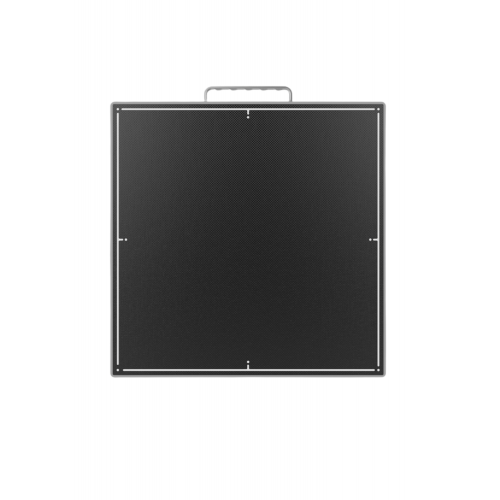

Vetoo DR Flat Panel is a high-resolution flat panel detector designed for use in digital X-ray systems. It converts X-ray radiation directly into digital images, enabling fast, clear, and high-quality radiographic imaging.

Thanks to its advanced Amorphous Silicon (A-Si) TFT sensor technology and CsI scintillator layer, the detector provides detailed visualization of bones, organs, and soft tissues. Compared to conventional film or CR systems, this technology delivers significantly faster image acquisition and accelerates the diagnostic process.

Vetoo DR flat panel detectors are compatible with both human medical and veterinary imaging systems, making them suitable for use in hospitals, clinics, and veterinary centers.

Technical Specifications

Detector Technology: Amorphous Silicon (A-Si) TFT
Scintillator: CsI (Cesium Iodide)
Panel Size: 14×17 inch / 17×17 inch
Pixel Pitch: 139 µm
A/D Conversion: 16-bit Grayscale
Active Imaging Area: Approx. 40 × 40 cm
Image Acquisition Time: 2–5 Seconds
Spatial Resolution: Approx. 3.6 lp/mm
Connectivity: Wi-Fi / Gigabit Ethernet
Trigger Mode: Automatic or Software Trigger
