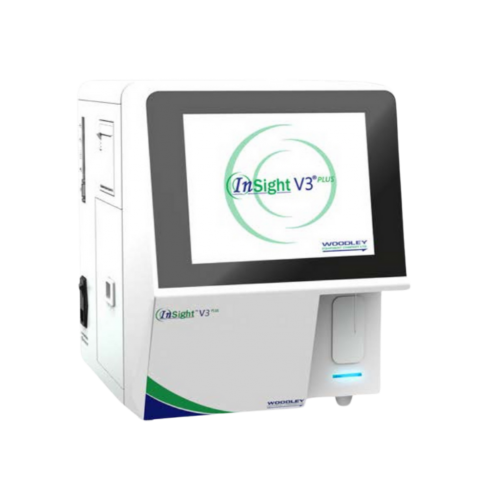

Woodley 3-Diff 21 Parameter Hematology Analyzer

Woodley 3-Diff 21 Parameter Hematology Analyzer

Woodley 3-Diff 21 Parameter Hematology Analyzer is a modern hematology device designed to perform fast, reliable, and highly accurate complete blood count (CBC) analyses in clinical and laboratory environments. Capable of analyzing a total of 21 parameters with 3-part leukocyte differentiation, the system is an ideal solution for daily routine laboratory needs.

Thanks to its advanced measurement technology, it rapidly analyzes erythrocyte, leukocyte, and platelet parameters, presenting results with clear graphical outputs. Its user-friendly touchscreen interface, low sample volume requirement, and high testing speed ensure efficient workflow for hospitals, clinics, laboratories, and veterinary practices.

The device provides a reliable hematology solution with high accuracy, stable measurement performance, and low maintenance requirements.

Technical Specifications

Number of Parameters: 21 Parameters
Differential: 3-Part (LYM / MID / GRAN)
Sample Type: Whole Blood / Capillary Blood
Sample Volume: Approx. 10–20 µL
Throughput: Approx. 60 tests/hour
Display: Color LCD / Touchscreen
Histograms: WBC, RBC, and PLT Histograms
Data Storage: 10,000+ Results Capacity
Printer: Built-in Thermal Printer
Connectivity: USB / LAN
Calibration: Automatic Calibration and QC Control
Operating Principle: Electrical Impedance Method
Reagent System: Open Reagent System
Design: Compact Bench-Top Design
Power Supply: 220V / 50–60 Hz

Measured Parameters

Leukocyte Parameters

WBC – White Blood Cell Count
LYM% – Lymphocyte Percentage
MID% – Monocyte + Eosinophil + Basophil Percentage
GRAN% – Granulocyte Percentage
LYM# – Absolute Lymphocyte Count
MID# – Absolute Mid Cell Count
GRAN# – Absolute Granulocyte Count

Erythrocyte Parameters

RBC – Red Blood Cell Count
HGB – Hemoglobin
HCT – Hematocrit
MCV – Mean Corpuscular Volume
MCH – Mean Corpuscular Hemoglobin
MCHC – Mean Corpuscular Hemoglobin Concentration
RDW-CV – Red Cell Distribution Width (CV)
RDW-SD – Red Cell Distribution Width (SD)
