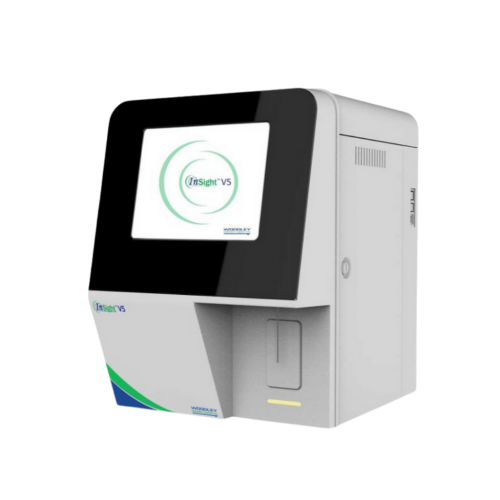

Woodley 5-Diff 23 Parameter Hematology Analyzer

Woodley 5-Diff 23 Parameter Hematology Analyzer

Woodley 5-Diff 23 Parameter Hematology Analyzer is a high-performance complete blood count (CBC) device developed for advanced hematology analysis. With 5-part leukocyte differentiation, it provides detailed white blood cell analysis and measures a total of 23 parameters quickly and reliably.

Thanks to its modern analysis technology, the system delivers accurate, fast, and dependable results in laboratory environments. Advanced measurement algorithms, high-sensitivity sensors, and automatic calibration ensure stable and reliable performance.

Its compact design, user-friendly interface, and high-throughput capacity make it an ideal hematology solution for hospitals, clinics, private laboratories, and veterinary practices.

Technical Specifications

Number of Parameters: 23 Parameters
Differential: 5-Part WBC Differential
Sample Type: Whole Blood / Capillary Blood
Sample Volume: 15–20 µL
Throughput: 60 Tests/Hour
Display: Color Touchscreen LCD
Histograms & Scattergrams: WBC, RBC, PLT Histograms and Differential Graphs
Data Storage: 20,000+ Results Capacity
Printer: Built-in Thermal Printer
Connectivity: USB / LAN / LIS Compatible
Calibration: Automatic Calibration and Quality Control System
Operating Principle: Electrical Impedance and Optical Analysis Technology
Reagent System: Open Reagent System
Power Supply: 220V / 50–60 Hz
Design: Compact Bench-Top Design

Measured Parameters (23 Parameters)

Leukocyte Parameters (5 Diff)

WBC – White Blood Cell Count
NEU% – Neutrophil Percentage
LYM% – Lymphocyte Percentage
MON% – Monocyte Percentage
EOS% – Eosinophil Percentage
BAS% – Basophil Percentage
NEU# – Absolute Neutrophil Count
LYM# – Absolute Lymphocyte Count
MON# – Absolute Monocyte Count
EOS# – Absolute Eosinophil Count
BAS# – Absolute Basophil Count

Erythrocyte Parameters

RBC – Red Blood Cell Count
HGB – Hemoglobin
HCT – Hematocrit
MCV – Mean Corpuscular Volume
MCH – Mean Corpuscular Hemoglobin
MCHC – Mean Corpuscular Hemoglobin Concentration
RDW-CV – Red Cell Distribution Width (CV)
RDW-SD – Red Cell Distribution Width (SD)
